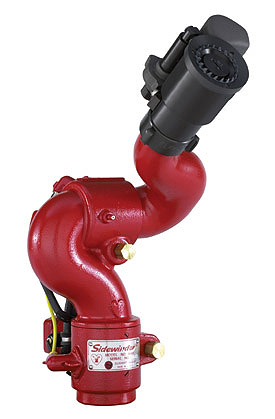

Elkhart's 8494-01 Sidewinder ™Remote Controlled Mini Monitor

8494-01 Sidewinder ™Remote Controlled Mini Monitor
Features Benefits
Durable, Lightweight O-Lite ® Construction
Fully Enclosed Stainless Steel Gears
Flow Efficient 2.0" Vaned Waterway
Three Nozzle Sizes – Flows from 15 to 350 GPM
Vertical Travel 135°
Horizontal Travel 180° or 334°
Gear Motors Totally Enclosed and Sealed
Double Ball Races with Stainless Steel Bearings
Constant Flow Nozzles
Manual Override
12VDC or 24VDC System
Epoxy Encapsulated Control Module
Control Box with 4 Function Switches
Optional Control Box with Joy Stick
Wiring Harnesses with Waterproof Connectors
Compact Size
Years of Dependable Service
Ease of Operation
Minimal Friction Loss
Safe Operation
Same Flow–Wide Fog to Straight Stream
Easy, Flexible Installation
Reliable Field-Tested System
Minimize Manpower
Elkhart Quality

Designed as a front bumper turret monitor for wildland firefighting operations • Can also be used for de-icing operations, dust abatement and many other applications • Constructed of durable, lightweight Elk-O-Lite • Flow Efficient 2.0" vaned waterway • Choose from three constant flow nozzle sizes for flows of 15 to 350 GPM • Stainless steel worm gears fully enclosed for protection from the elements • Vertical travel 135°, (90° above to 45° below horizontal) • Horizontal travel available 180° or 334° (please specify) • Double ball races with stainless steel bearings • Electric gear motors totally enclosed and sealed • Manual override in the event of power failure • Operating voltage 12VDC or 24VDC with maximum draw of 4 amps • Motors available either slow speed (65.5:1), fast speed (19.7:1) or combination of both (please specify) • 2.0" NPT female inlet • 1.5" NHT male outlet • Finish red urethane enamel • Control system includes: One (1) epoxy encapsulated control module, one (1) weather tight control box with 4 double throw toggle switches (water on/off, monitor up/down, monitor right/left, and nozzle straight/fog), and three (3) wiring harnesses with waterproof connectors • Optional joy stick control box available at additional cost (please specify).

Price: $7,937.00
Buy Product Online | Visit Store Home
Manufactured by Elkhart Brass
