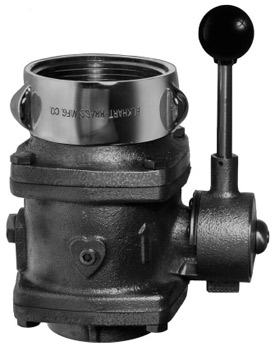

Elkhart's 2892 2.0" Hydro-Loc®Apparatus Valve

2892 2.0" Hydro-Loc®Apparatus Valve

Features

Benefits

•	Rugged, Cast Brass Construction
•	Self-Locking Mechanism
•	Hydraulically Balanced Acetal Ball
•	Adjustable, Teflon Impregnated Neoprene Seat
•	Full Flow Waterway
•	Two Handle Options
•	“D” Handle for Remote Operation
•	“F” Handle for Direct Operation
•	Twelve Handle Position Options*
•	Over 80 End Cap Options
•	Original Drop-Out Design (Swing-out if Desired)
•	Each Valve Tested to Meet NFPA 1901 Standards
•	Available in 1.5", 2.0", 2.5" and 3.0" Sizes

•	Years of Dependable Service
•	Safe and Efficient Operation
•	Separate Locking Mechanism not Needed
•	Applicable for Most Installations
•	Use as Inline, Suction, or Discharge
•	Easy Field Service–Drop-out or Swing-out
•	Elkhart Quality

Rugged, cast brass construction • Full flow 2.0" waterway • Adjustable, teflon impregnated neoprene seat • Hydraulically balanced acetal ball • Self-locking mechanism • Swing-out or drop-out for field service • Choose from 11 optional end caps (see pages 7-22 thru 7-25) • Available with “D” handle or “F” handle • Finish cast brass • Weight (2892-01-01-D), 9.5 lbs.
